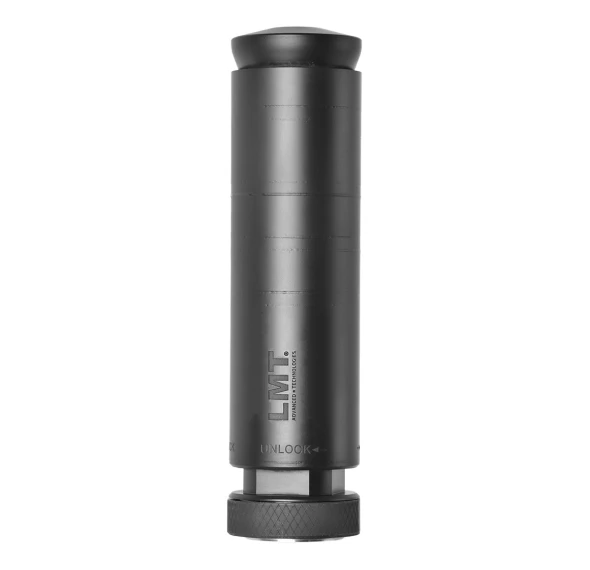

LMT LINK 30

The LMT LINK 30 is a 7.62 caliber suppressor originally developed in connection with a U.S. government contract for belt-fed machine gun applications. Designed for use with platforms such as the M240B, M240L, and MK48, it utilizes a 25/32×24 thread pitch and a dedicated locking flash hider mounting system. The suppressor incorporates a non-stagnate, low-backpressure baffle design intended to mitigate sound, flash, and environmental signature while managing gas flow in high-volume firing schedules.

Constructed from stainless steel and Inconel with laser-welded assembly, the LINK 30 is belt-fed rated and built to accommodate extended firing cycles consistent with military training programs. The body is finished in Cerakote Armorer Black (C-192) and treated with UltraOx for additional surface protection. There are no specified barrel length restrictions. Each unit is inspected, test fired, cleaned, and re-inspected prior to shipment.

Specifications

• Caliber: 7.62mm
• Thread Pitch: 25/32×24
• Mounting System: LMT AT Locking Flash Hider (V762MG1FHL)
• Construction: Stainless steel and Inconel
• Finish: Cerakote Armorer Black C-192 with UltraOx treatment
• Baffle Design: Non-stagnate, low-backpressure
• Belt-Fed Rated: Yes
• Barrel Length Restrictions: None specified
• Weight: 34 oz (with secondary lock)
• Length: 7.7"
• Diameter: 2.0"

What's In the Box:

• LINK 30 Suppressor (ATION762MGW) with secondary lock
• 25/32×24 Locking Flash Hider (V762MG1FHL)
• LINK 30 mounting tool (V762MGT)
• Suppressor sticker
• Operator manual
